Outdoor High Brightness Mobile Trailer LED Truck Display With Lifting Function

Brand Name : Bako Vision

Model Number : BOF Series

Certification : CE, EMC, ETL, FCC, RoSH

Place of Origin : China

MOQ : 1 sqm

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, D/P, MoneyGram

Supply Ability : 20,000 sqm/month

Delivery Time : 15-20 working days

Packaging Details : Plywood case / Flight Case

Product Name : Mobile LED Screens

Physical Pitch : 3mm, 4.81mm, 5mm, 6.67mm, 8mm, 10mm

Module Size : 320*160mm/320*320mm

Cabinet Material : Steel/Aluminum

Cabinet Size : Customized

LEDs : Nationstar/Kinglight

Maintenace Way : Front/Rear

Brightness : 5,000 nits - 7,500 nits

Refresh Rate : 1920Hz / 2880Hz / 3840Hz

Viewing Angle : 160°/140°

IP Rating(Front/Rear) : IP65/IP54

Average Power Consumption : 90/360 W/m2

Max. Power Consumption : 230/900 W/m2

Contrast Ratio : 2000:1

Life Span : 100,000 hours

Warranty : 2-5 Years

HS Code : 8528591090

Contact Now

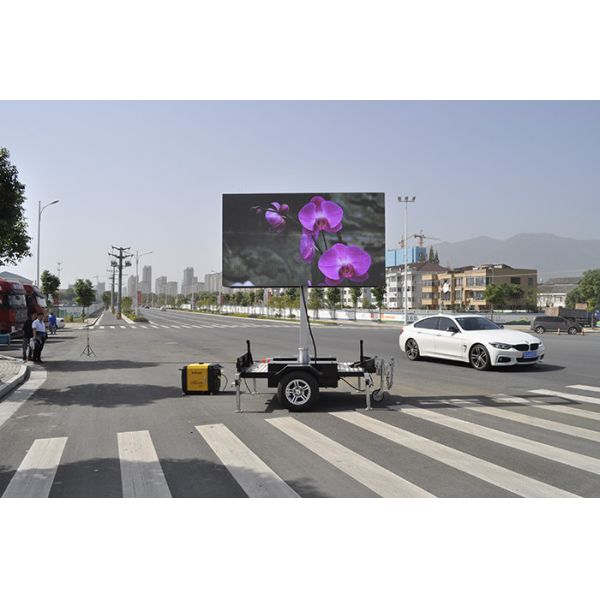

Outdoor High Brightness Mobile Trailer LED Truck Display Screen with Lifting Function

BOF Series (BOF-F.pdf/BOF-B.pdf)

Trailer LED Screens

Specification
Pixel Pitch(mm): 3 / 4.81 / 5 / 6.67 / 8 / 10
Brightness(nits): 5,000 - 7,500 nits
Refresh Rate(Hz): 1920 / 2880 / 3840 Hz
Key Point: Most common outdoor LED billboard


1. Competitive prie: 12,000usd per unit.

2. Moving ads available in every corner of city.

3. Easy operation, only 1 person can handle all staff.

4. High brightness, refresh pictures available.

Trailer LED Billboard Features

  • SMD 3in1 Technology, wide view angle 160°/140°.
  • Waterproof with IP65, suitable for every condition.
  • Energy-saving.
  • High brightness up to 8000nits, visible from every direction even face to direct sunshine.
  • Good heat dissipation with 4pcs fans in each cabinet.
  • Large TV set, providing movable advertising/broadcasting live for your event.

Outdoor High Brightness Mobile Trailer LED Truck Display With Lifting Function

Outdoor LED Display Parameters

BOF-B-8
Physical Pitch 8 mm
Pixel Configuration SMD 3535
Pixel Density 15,625 pixels/m²
Module Dimensions (W × H) (mm) 320 × 160
Panel Dimensions (mm) 960 × 960 × 150
NO .of Modules Per Panel (W × H) 3 × 6
Physical Resolution of Module (W × H) 40 × 20
Physical Resolution of Panel (W × H) 120 × 120
Panel Material Steel / Aluminum
Weight(m²) 65/45
Processing 16 bit
Colours 281 trillion
Contrast Ratio 2,000 : 1
Average Power Consumption 360 W/m²
Max Power Consumption 900 W/ m²
Brightness ≥6500 nits
Refresh Rate ＞1,920 Hz
Horizontal Viewing Angle 160°
Vertical Viewing angle 140°
Expected Lifetime 100, 000 Hrs
Servicing Rear
IP Rating IP 65
Operating Temp/Humidity -20℃-50℃ / 10%-90%
Storage Temp/Humidity -20℃-50℃ / 10%-90%
Scan Method 1/4 Scan

Digital LED Panel Advantages

1. Lower temperature, generally is 10-16 ℃ lower than convertional screens.

Outdoor High Brightness Mobile Trailer LED Truck Display With Lifting Function

2. Uniform heat, constant color temperature, ensuring uniformity of the entire screen, no distortion of the image effect.

Outdoor High Brightness Mobile Trailer LED Truck Display With Lifting Function

3. Natural heat dissipation does not require air conditioning/fans, zero noise when the screen works.

Outdoor High Brightness Mobile Trailer LED Truck Display With Lifting Function

4. Lower power consumption, energy-efficient IC, reduce circuit losses, 70% energy saving.

5. Both front and rear service are available, easy and fast operation.

Trailer LED Applications

Outdoor High Brightness Mobile Trailer LED Truck Display With Lifting Function

  • Advertising & Entertainment.
  • Equipment Status Display.
  • Public Message.
  • Traffic Information.
  • Bulletin Board.

About Bako Vision

Outdoor High Brightness Mobile Trailer LED Truck Display With Lifting Function

  • Over 10 Years Experience on LED Display Screen Manufacturing in China.
  • 3 Years High Quality Warranty Provided.
  • Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
  • Overseas Customer in 120+ Countries in The World.
  • Full Capable to Provide the Tailor Work of OEM, ODM.

Our services

Pre-producing

  • Get complete requirements of clients.
  • To do a thorough analysis.
  • Offer a most reasonable and scientific solution.
  • Customized design.

In producing

  • Producing progress updating for clients.
  • Particular installation CAD and design diagram for clients.

After service

  • 2 years free maintenance.
  • 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
  • Free training for customers in factory.
  • Arrange engineer go to your place to support installation.
